Features

• Lift vehicle 14" for easy maintenance and spectacular display
• 90" to 115" adjustable wheelbase; 15" cutouts make ramps easier to move
• Modular design is easy to transport and store

• 30 DAY GUARANTEE - Satisfaction or money back
• MADE IN USA - and proud of it

Specifications

• Made in the USA

• Sold As: Pair

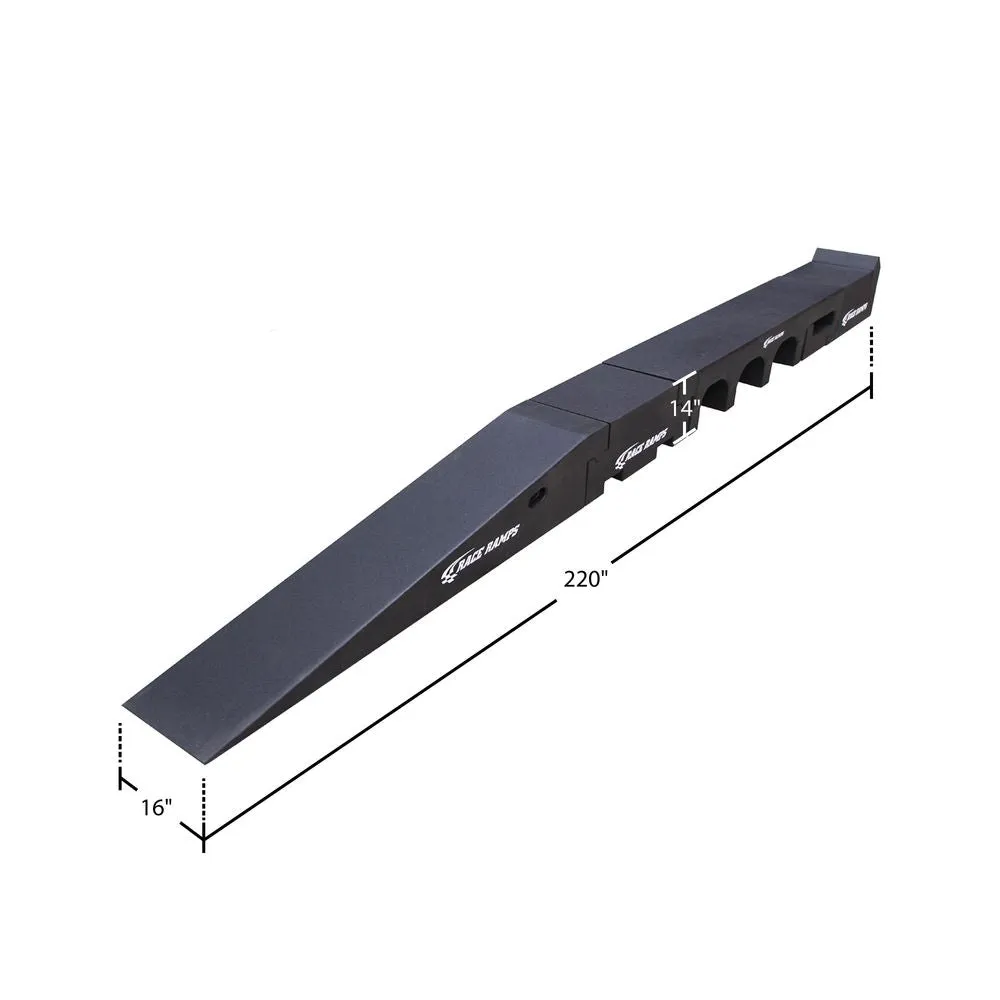

• Length: 220"

• Width: 16"

• Maximum Tire Width: 14"

• Height: 14"

• Lift Height: 14"

• Weight: 250 lbs.

• Material: Expanded foam with traction coating

• Approach Angle Degree: 10.4°

• Maximum Capacity: 6000 lbs.

• Cutout Size: 15"

• Color: Black
• Expanded foam with traction coating

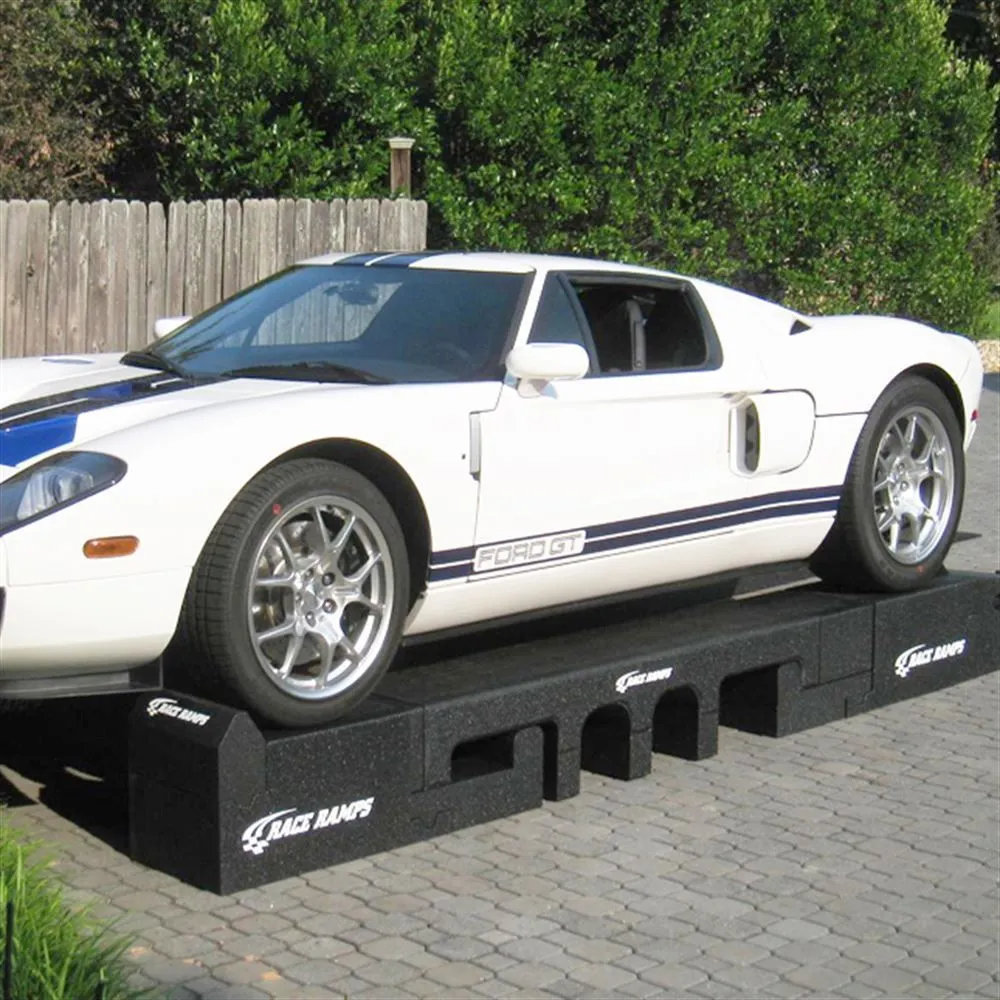

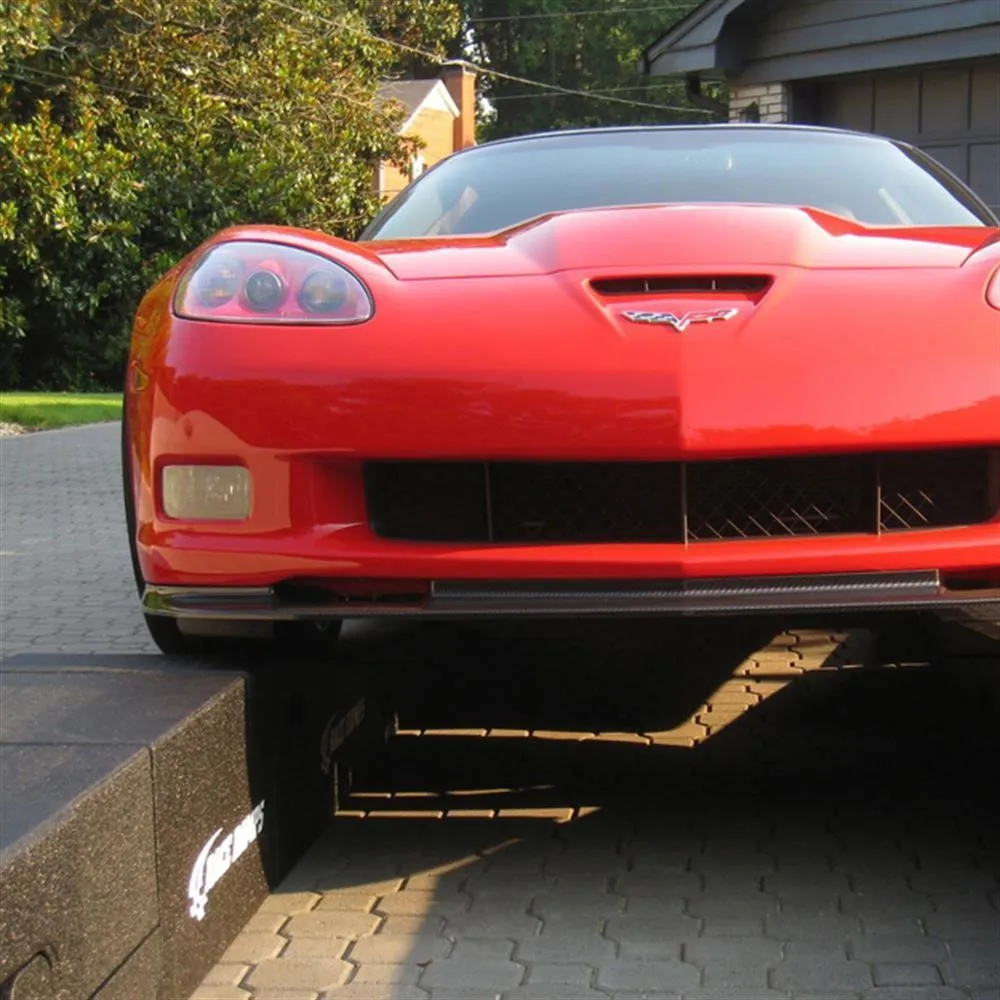

Great for wrapping or simple maintenance, Portable Pit Stop Ramps elevate vehicles for better body height and safer underbody access. They’re light enough to bring with you to the track, keep on hand in your personal garage, or simply leave out in your workshop for everyday use.

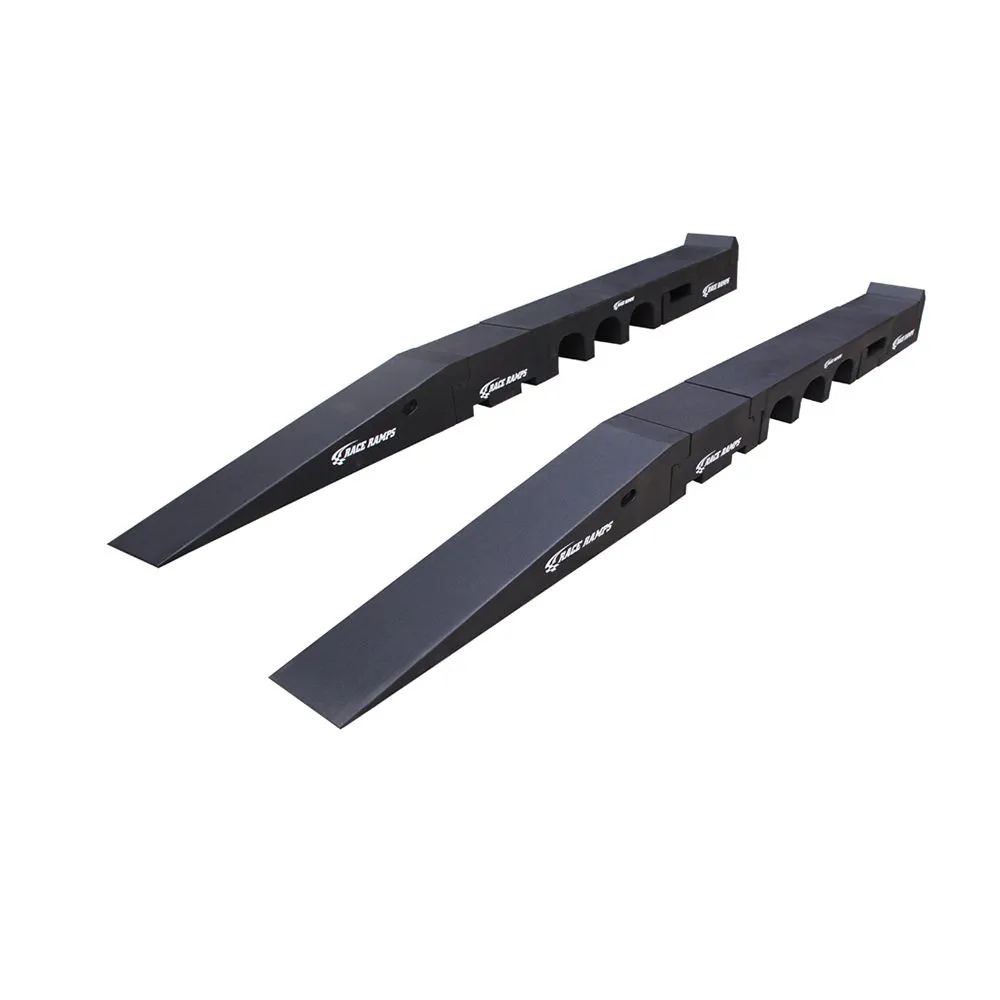

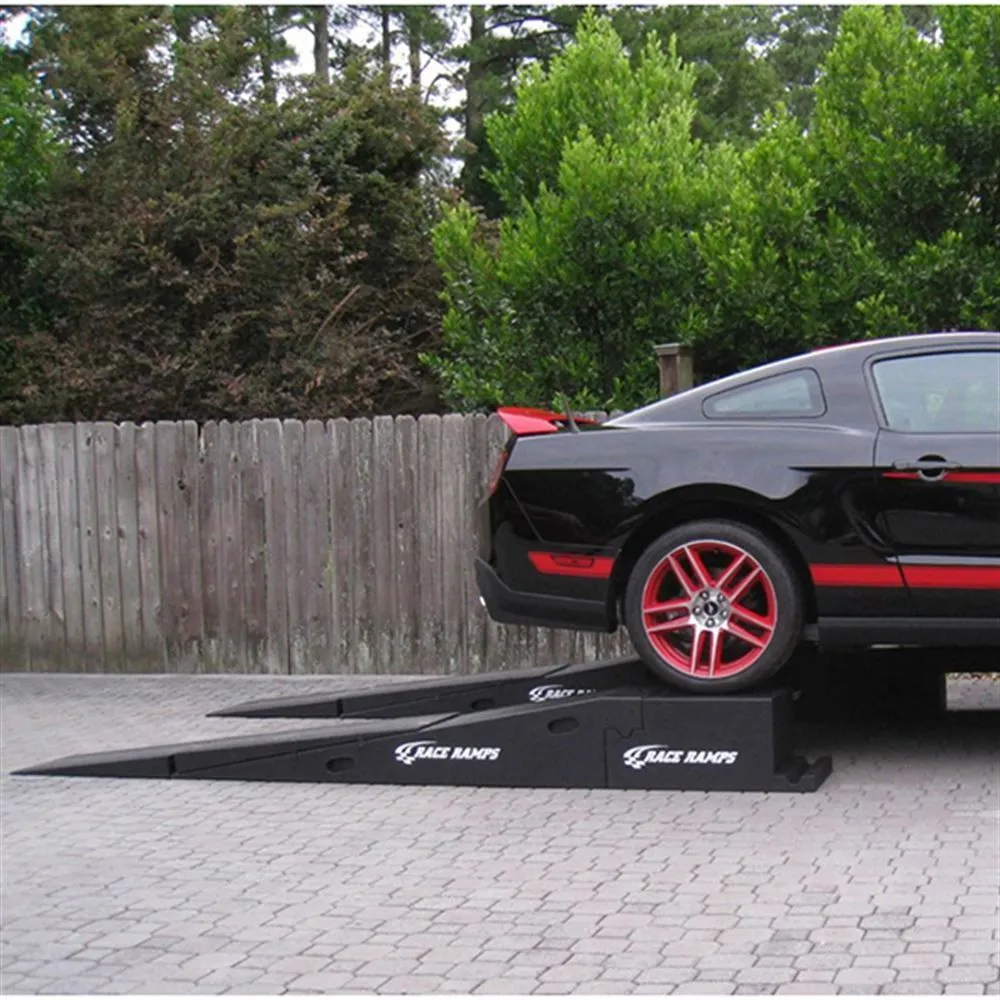

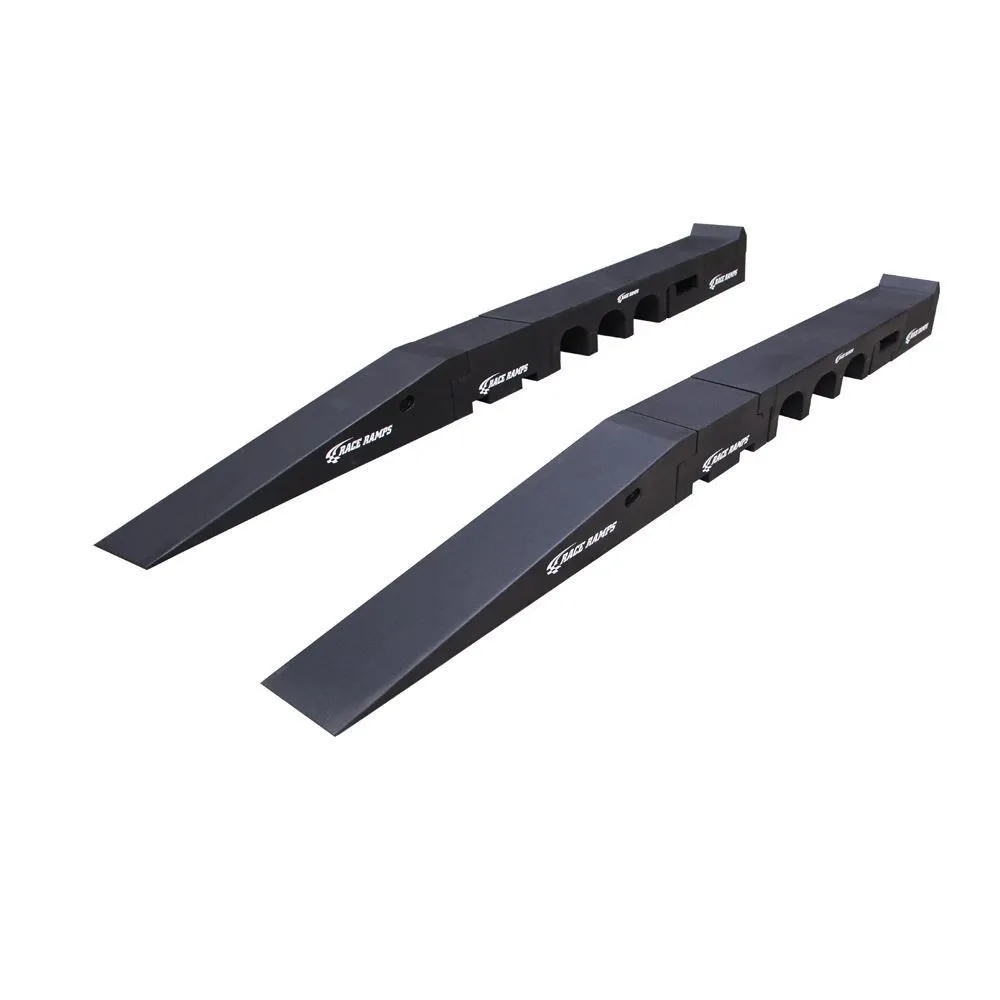

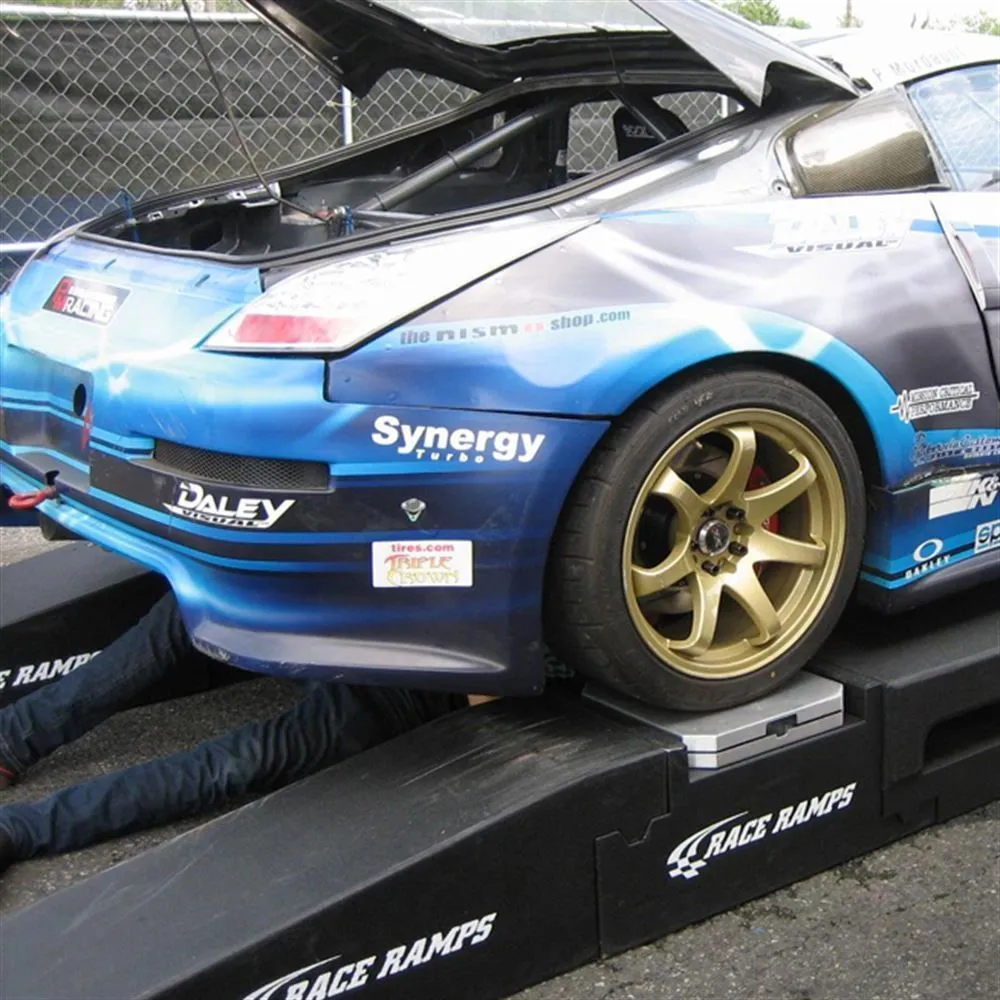

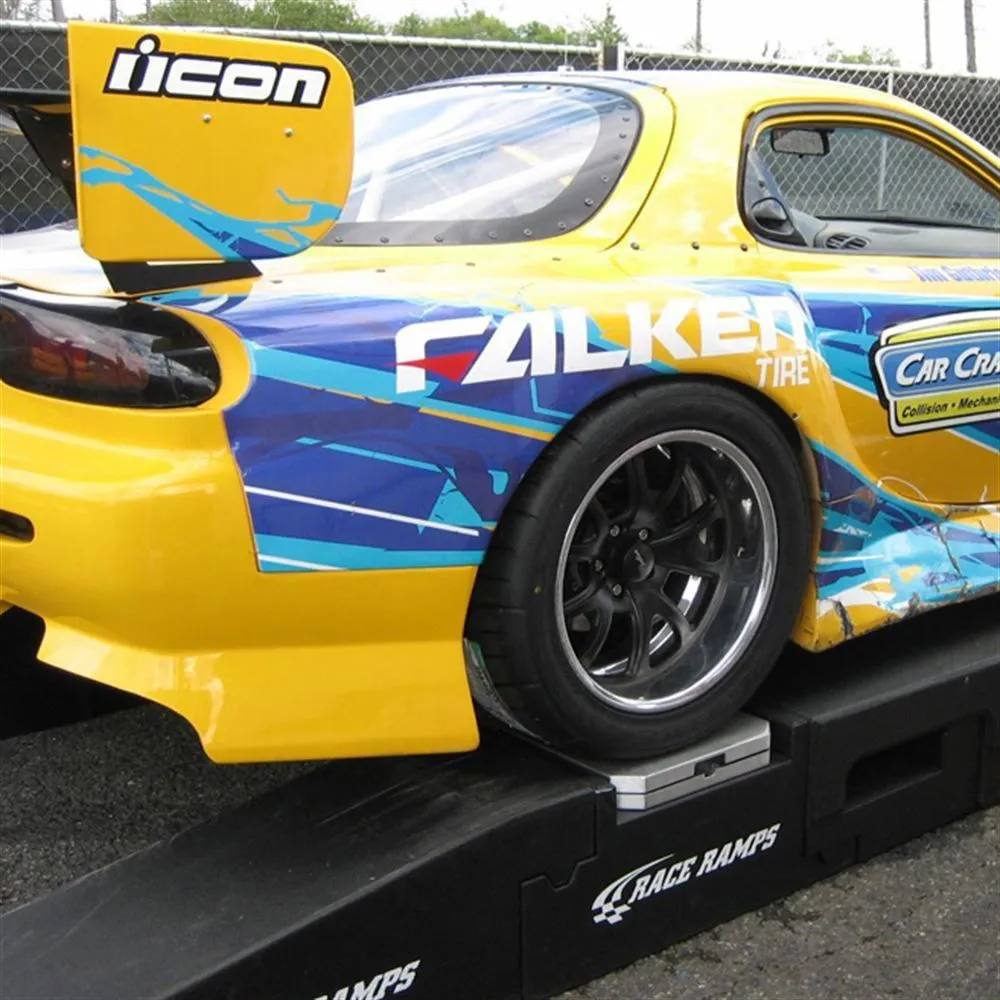

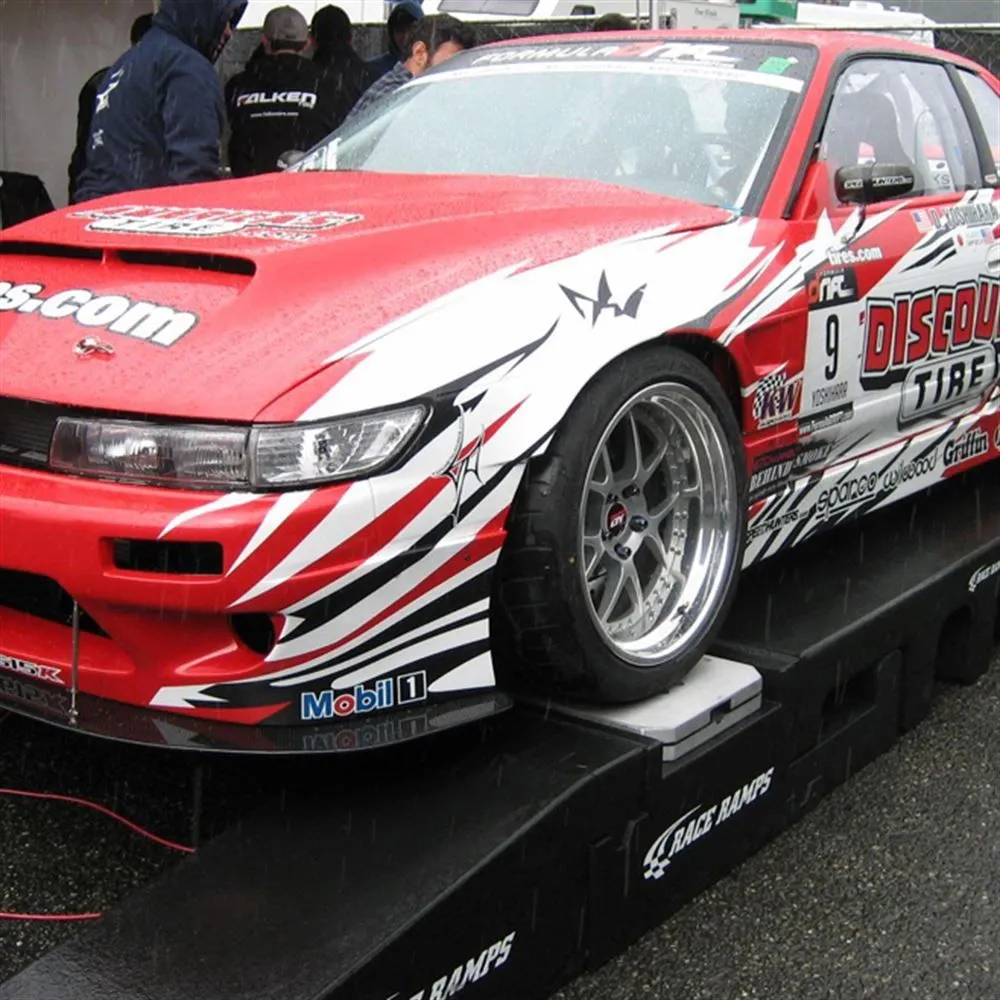

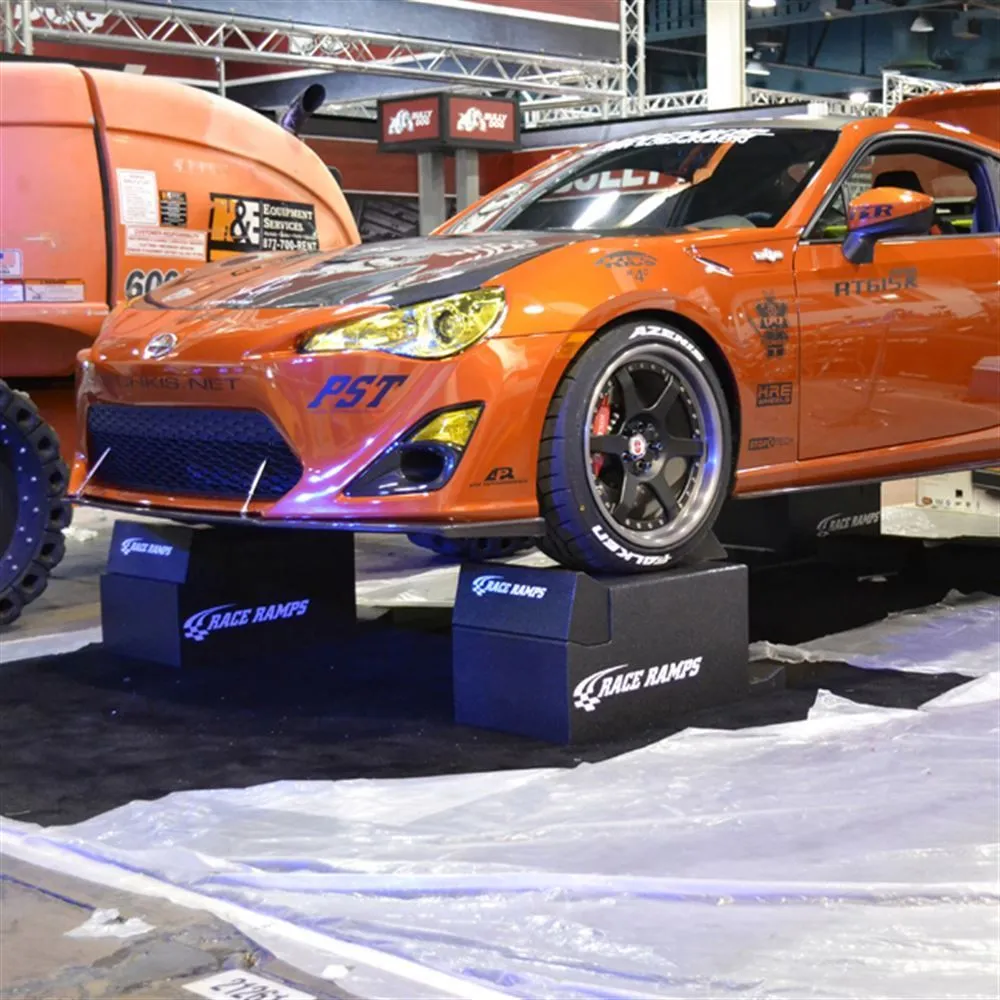

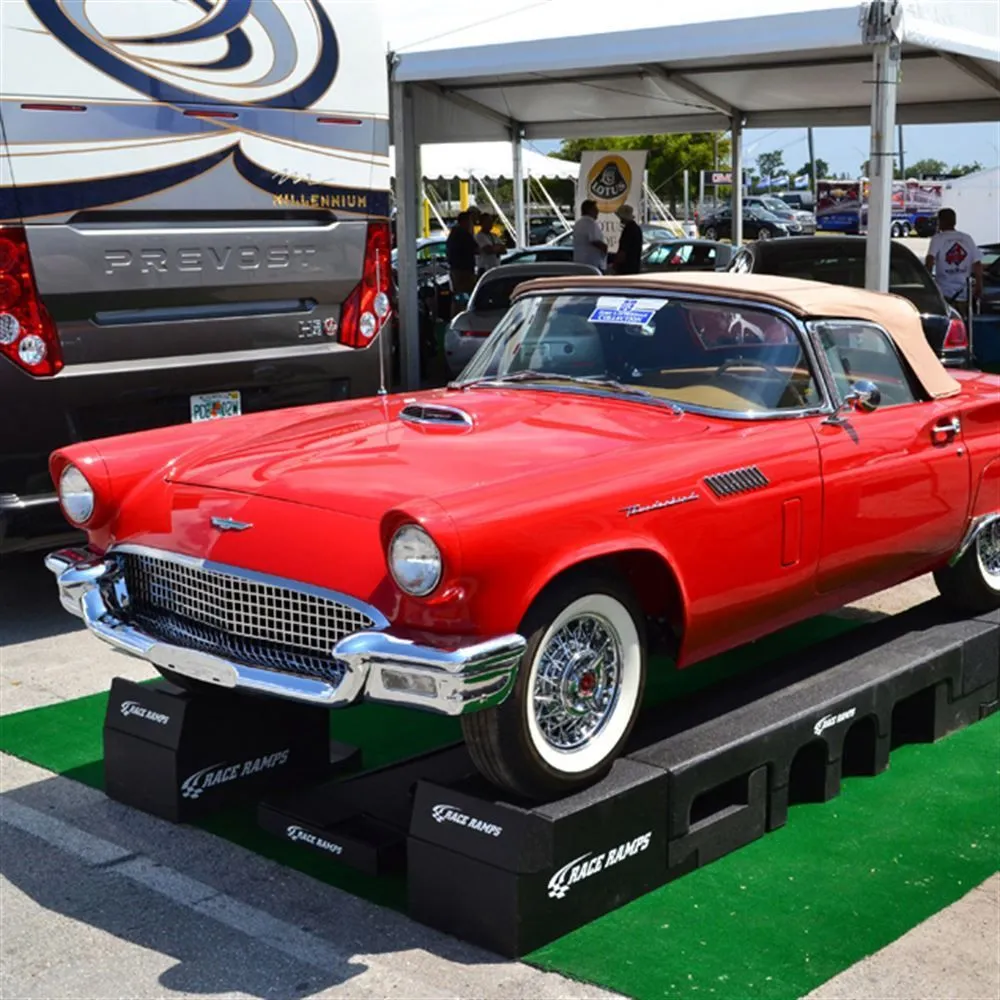

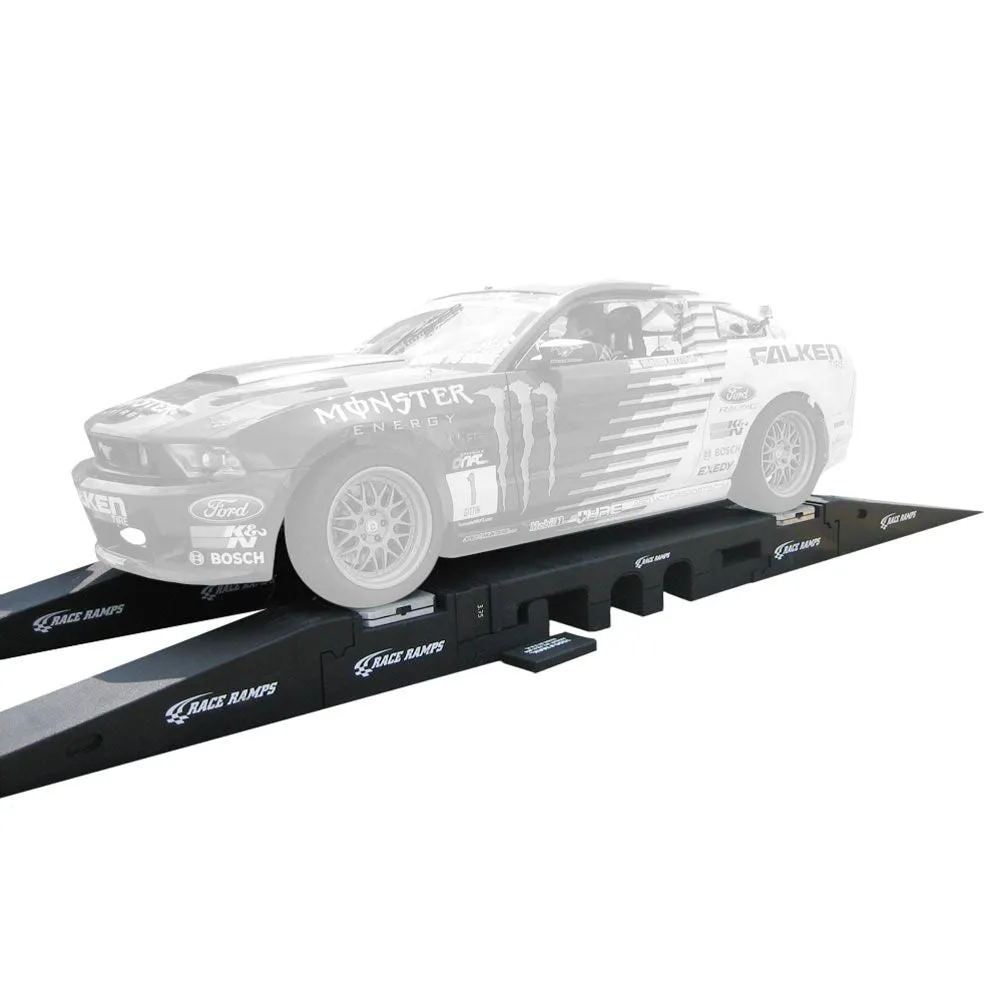

The multi-piece design is easy to assemble with pieces that weigh no more than 40 pounds; and once a car is positioned on top, the center pieces and inclines can be removed for even better accessibility under the car and around the perimeter. The ramp platform provides 14 inches of lift and can accommodate a wheel base of 90 to 115 inches and tires up to 14 inches wide. Each incline has a 10-degree approach angle, and the racer model comes with 15 inch cutouts on top for use with scales. The entire ramp system can support up to 6,000 pounds. An additional set of inclines is available if you wish to have ramps at both ends.

These ramp platforms are manufactured using an exclusive, patented process. They are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable. They won’t slide on any surface, including garage and workshop floors.

Usage Guidelines

Please ensure that your ramp is damage-free before use. Never use two ramps on the same side of the vehicle. Use on a flat, level surface and ensure that the ramp makes full contact with the ground. Check that your steering wheel is straight and drive up at a slow, steady pace.

Disclaimer

Race Ramps and Redline360 are not responsible for any injuries and/or vehicular damage incurred from the misuse and abuse of these products. In layman's terms... Please exercise great care and basic common sense.
